Panama Highway Rebuilt with Concrete
A highway link to the north of Panama’s capital city that connects with a national park popular with tourists, has now been rebuilt. According CEMEX, cement producer, concrete specialist, and ISCP Member, this road was chosen because it serves various farms in the region and could potentially serve an entire community. However, in the winter season the road becomes difficult to use due to poor weather conditions. With the CEMEX technology, the firm deems that it will be able to keep this road open to traffic through the year, creating a robust infrastructure that supports mobility and independence—promoting economic exchange and access to different social services. This solution was adapted to local needs in coordination with the CEMEX Research Group in Switzerland and the Centre for Cement and Concrete Technology in Mexico, provides a more accessible and affordable option.

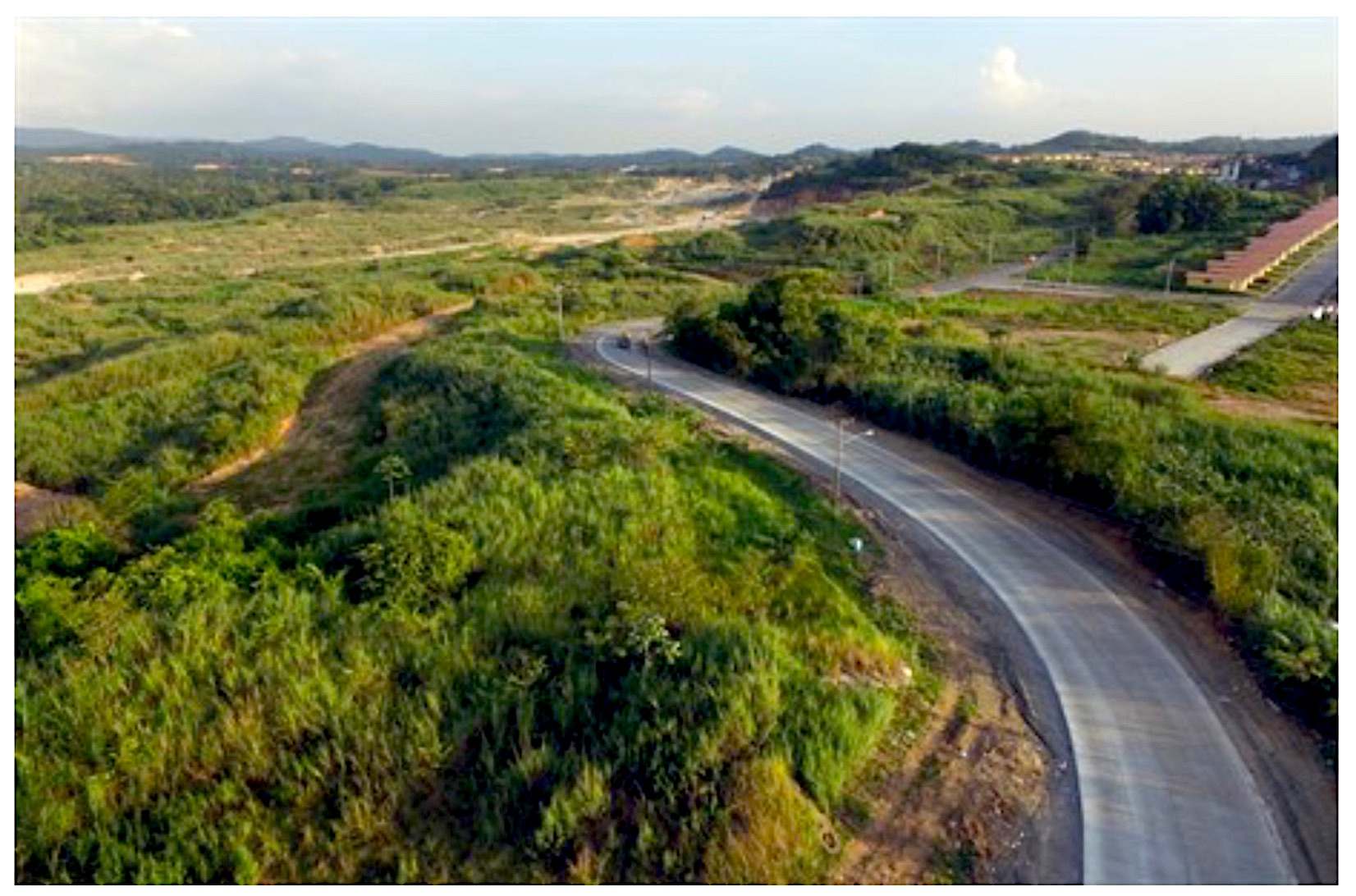

The aim of this road upgrade is to further boost tourism in the country and further develop the economy. CEMEX performed a study into the project to find a cost-effective solution. And working with CEMEX, Panama’s Ministry of Public Works began planning for the project in 2015. A 5.7km stretch of the highway has now been improved, with the road structure being built from concrete. The route is important as it provides one of the main access points to the Chagres National Park and Alajuela Lake. These are among the most popular tourist destinations in Panama, are key to the tourist trade, as well as very important to the locals.
According to CEMEX, improving the road is a joint effort between the government, the community, and the firm. The work also includes the addition of walkways for pedestrians and ditches for channelling rainwater. The project is expected to benefit the local economy, providing an improved link for about 15,000 people in the region.
The proposed combination of CEMEX’s thin concrete pavement solution and concrete overlay allowed for an extension of the original project proposal from a length of 3.6km to 5.7km. CEMEX’s solution should offer increased durability and require less maintenance, extending the road’s life by at least 20 years. Other important benefits include the ability to reflect more light than other materials, resulting in higher night visibility and reducing lighting expenses.
The small town of Parita, in Panama’s Herrera province, will also benefit from a new road built using CEMEX technology. The firm opted to use its special “Unicapa pavement application solution” in Panama. This system has been well proven for rural and difficult access roads in other Central American countries such as Costa Rica and Nicaragua. Unicapa offers a solution for roads that are difficult to access, or that concrete mixer trucks cannot easily reach. It involves placing cement bags in a chessboard pattern on a rural road, mixing the cement with the road’s existing material to create a single 170-250mm layer of pavement. The initial pilot project for Unicapa in Panama was the rehabilitation of the short Camino El Limón route. For El Limón’s 200m length, CEMEX used 1,000 bags of cement.
To read the entire article, please go to: http://www.worldhighways.com/sections/emergent/features/panama-highway-rebuilt-with-concrete/.
